Logical Models

EHDS Logical Data Models

Logical data models (or information models) for the European Health Data Space (EHDS) are currently being developed by the Xt-EHR Joint Action. These models will form the basis of the Joint Action proposal for the future EHDS Implementing Act.

They represent evolving, refined interpretations of the data sets described in the eHealth Network (eHN) Guidelines, and are expected to be further updated during the Joint Action process.

This Implementation Guide (IG) aims to align with the emerging EHDS logical models and to provide HL7 FHIR profiles that realise the requirements identified in these models.

Below is a simplified representation of a laboratory report. The data set comprises several basic parts, as visualised in the diagrams below.

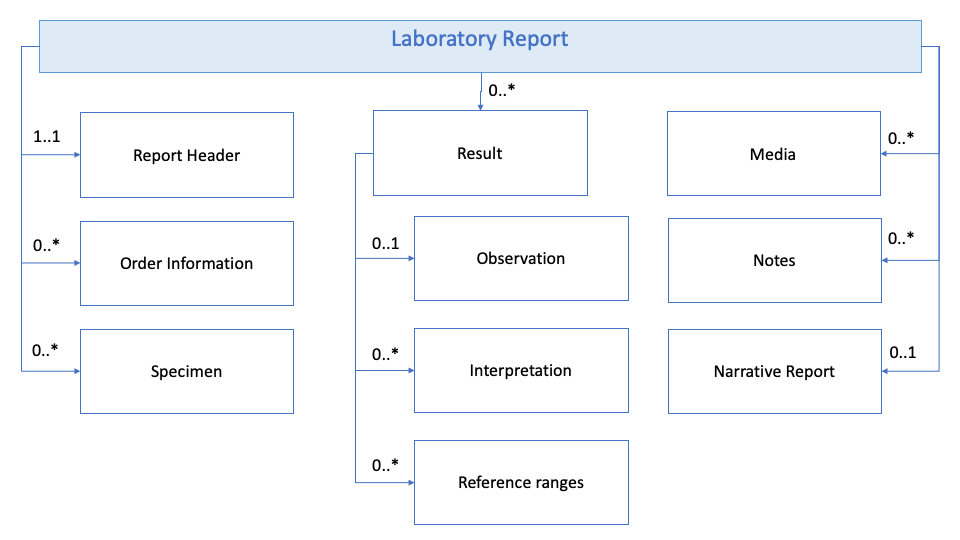

Figure 1: Laboratory dataset model

Figure 1: Laboratory dataset model

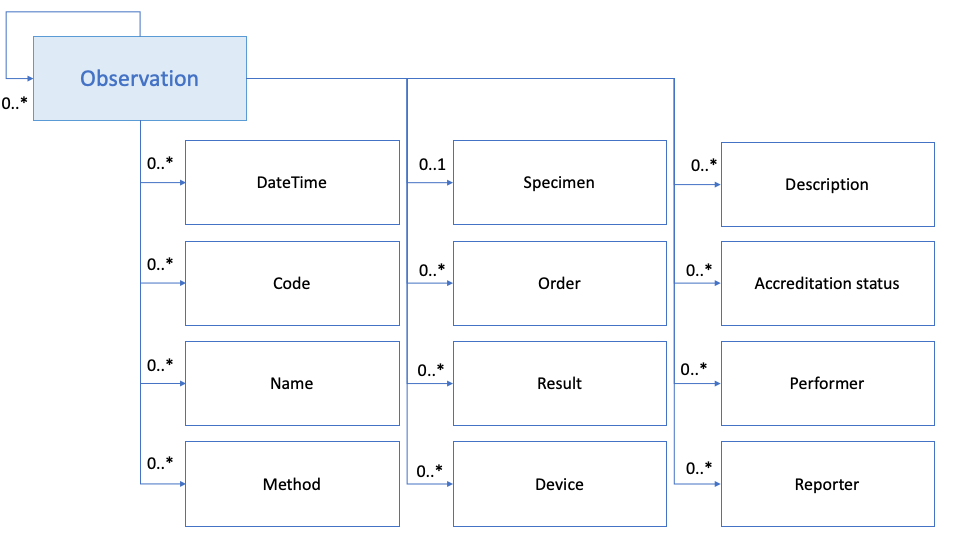

Figure 2: Laboratory observation dataset model

Figure 2: Laboratory observation dataset model

EHDS Logical Data Models

The EHDS logical models currently supported in this version of the guide are listed below. For the most recent and in-progress versions, please refer to the Xt-EHR EHDS Logical Information Models Implementation Guide.

Ongoing alignment: The models are expected to continue evolving, with updates incorporated into this Implementation Guide to maintain alignment with the EHDS Implementing Acts.

Xt-EHR Logical Models

Laboratory Report Model

Model Description
EHDSLaboratoryReport EHDS logical model for laboratory result reports
EHDSLaboratoryObservation EHDS refined base model for observations performed by the laboratory

Common Models used by the Laboratory Report Model

Model Description
EHDSPatient EHDS refined base model for Patient (subject of care)
EHDSRelatedPerson EHDS refined base model for a person related to the patient
EHDSHealthProfessional EHDS refined base model for Health Professional
EHDSOrganisation EHDS refined base model for healthcare organisations and providers
EHDSAttachment EHDS refined base model for containing or referencing attachments.
EHDSDevice EHDS refined base model for Device information
EHDSCondition EHDS refined base model for a clinical condition, problem, diagnosis, or other event, situation, issue, or clinical concept that has risen to a level of concern
EHDSMedicationAdministration EHDS refined base model for medication administered to the patient
EHDSImmunisation EHDS refined base model for immunisation
EHDSObservation EHDS refined base model for medical test results and other clinical observations
EHDSSpecimen EHDS refined base model for specimen information
EHDSServiceRequest EHDS refined base model for requested laboratory services
